AP1001 series

Since 2002, Yangzhou Daheng Electric Technology Ltd (DHE) has been dedicated to design and manufacture secondary bushings for ANSI transformers, including epoxy, tri-angle, porcelain and other polymer type.

High performance polymer materials

Improved polymer to endure larger temperature rating, UV stability, and service life.

High mechanical strength：

Higher impact resistance in comparison to porcelain. Strict inspection of torque force 100% coverage.

High electrical performance：

Higher dielectric strength and superior electrical performance compared to a porcelain assembly. Removal of air gaps and assembly hardware improves partial discharge performance and reduces potential leak paths.

Type Test

The tests were conducted in accordance with IEC60137

Ø Dielectric Tests

Impulse test

Low Frequency 60 Hz Withstand test

Partial Discharge test

Ø Mechanical Strength Tests

Leak test

Stud Interface Strength test

Stud Torque Strength test

Cantilever test

Flange Torque test

Ø Environmental Tests

Thermal Cycle test

Temperature Rise test

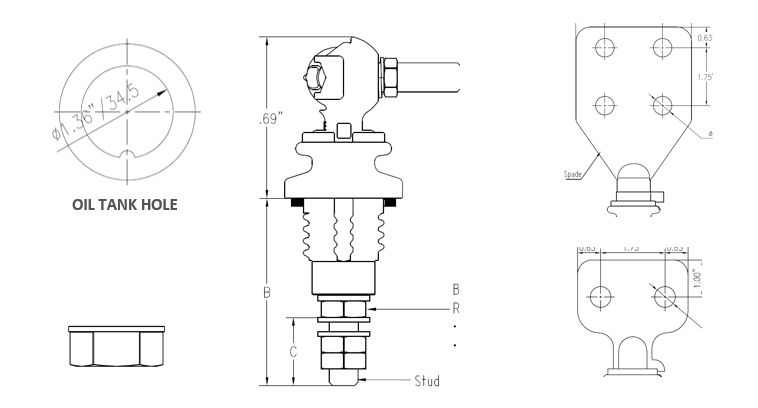

AP1001 series- BIL30kV 100~630A CU/HPP

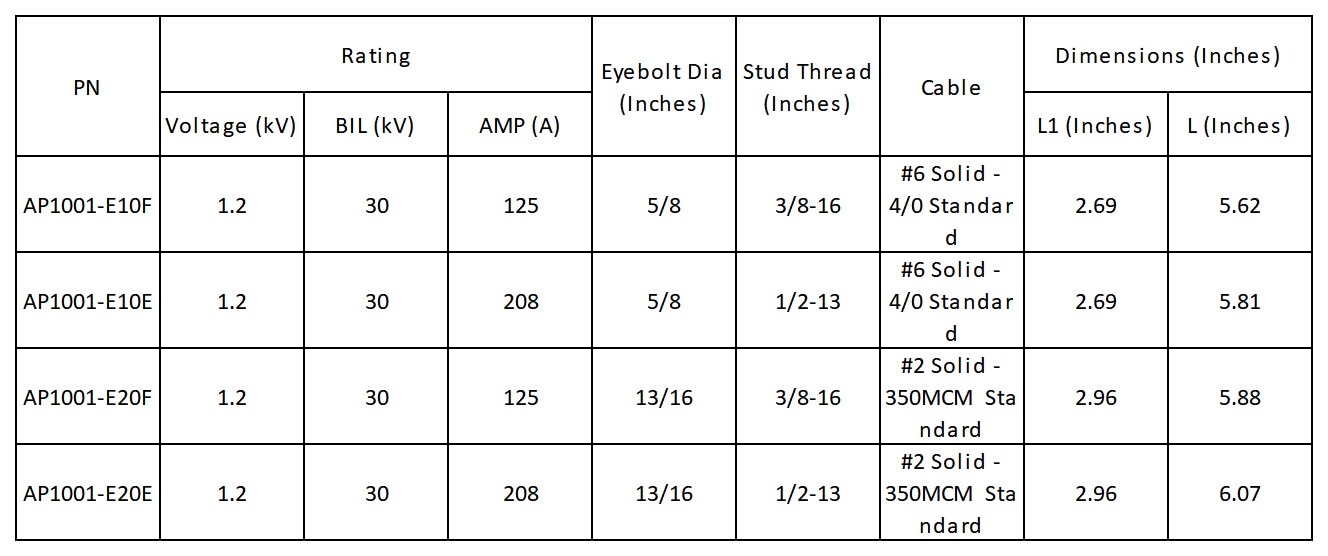

Eyebolt Type

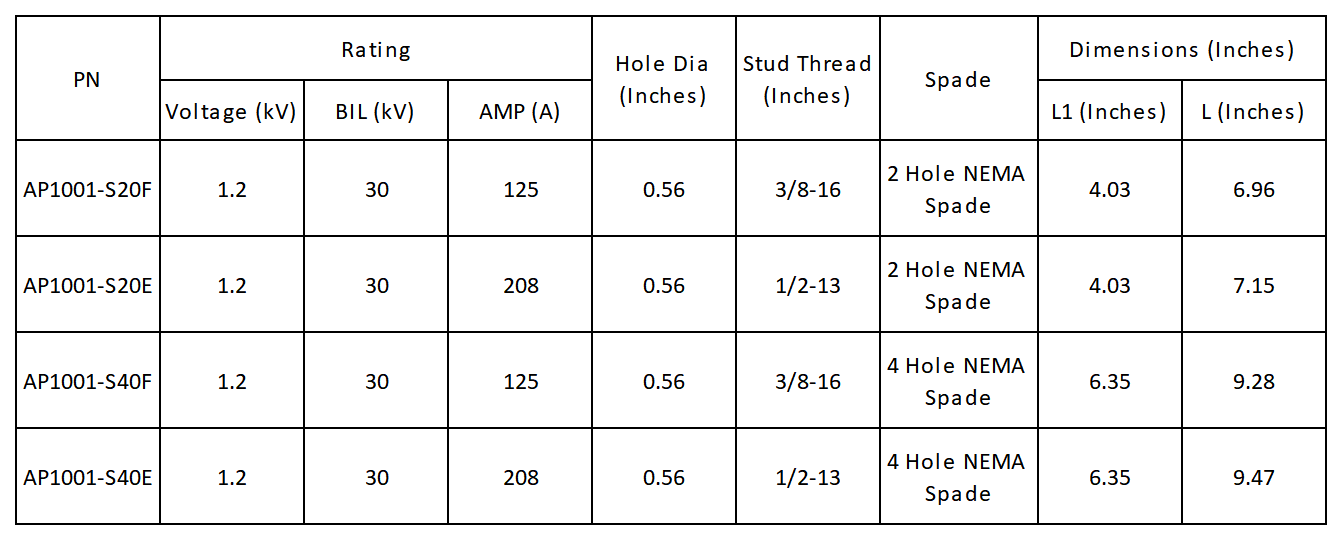

Spade Type

Rated voltage: 1.2 kV

Basic impulse level: 30 kV

Rated current: 100~630A

Conductor material:C11000.

Spade/Eyebolt: Copper alloy tin-plated plastic bushing: Grey
