AB41 Series-Porcelain

FEATURES

• Comply with IEEE Std. C57.19.00
• Reliable wet-process process electric porcelain
• Special designed mechanism for thermal expansion compensation ensures the bushing has no leakage problem under heavy current operation
• The essential vent plugs ensure the elimination of residual gas while transformer oil pump in
• Strict type test and routine test

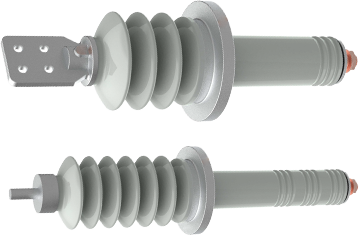

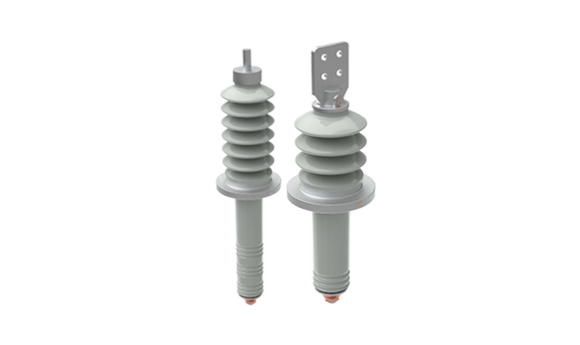

AB41 series-Porcelain Power bushings

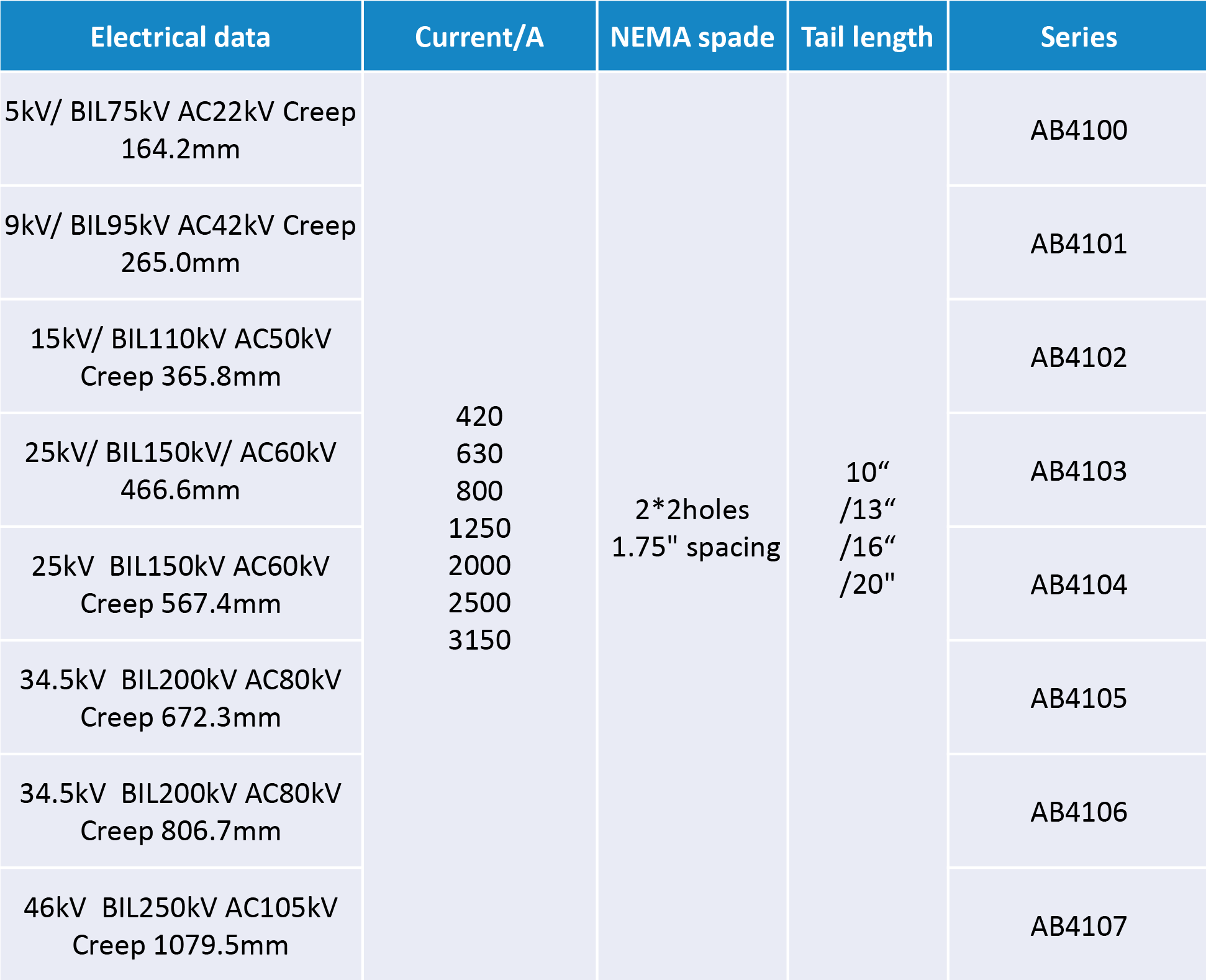

Product series: DHE AB41 series power bushings
Current rating range: 420A to 3150A
Voltage class range: 5 kV to 46 kV

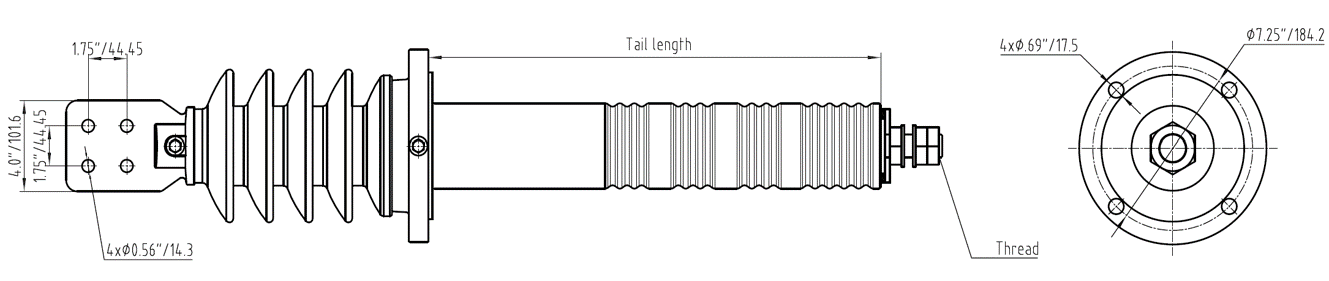

Tail length: Customer-selectable different tail lengths
Application scenarios: Power transformers, large KVA distribution transformers (such as >10MVA)
Application note: Power transformers operate at higher voltage levels and carry heavier grid loads than small distribution transformers, designed for long-term continuous operation under severe working conditions with higher insulation performance requirements during long service life
